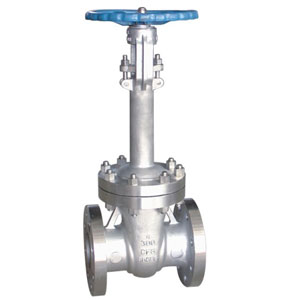

美标低温闸阀DZ41Y
2016-08-10
钢制闸阀，API600/API 6D
钢制闸阀，ISO 10434/ISO 14313
温度和压力，ASME B16.34
结构长度，ASME B 16.10
端法兰， ASME B 16.5
对焊端，ASME B 16.25
试验标准，API 598/API 6D
设计说明
栓接阀盖
全通型
明杆
刚性或弹性闸板
可更换阀座
锻造T型头阀杆
升降式或非升降式手轮
法兰或对焊端
可安装伞齿轮
标准材料规范
| NO. | Part Name | ASTM Material | |||||||
| Carbon steel | 2.5Ni | 3.5Ni | 304 Type | 316Type | 304L Type | 316LType | 20 Alloy | ||
| 1 | Body | A352LCB | A352LC2 | A352 LC3 | A351 CF8 | A351CF8M | A351CF3 | A351CF3M | A351 CN7M |
| 2 | Bonnet | A352LCB | A352LC2 | A352 LC3 | A351 CF8 | A351CF8M | A351CF3 | A351CF3M | A351 CN7M |
| 3 | Wedge | LCB+304 "1 | LCB+304 "1 | LCB+304 "1 | A351 CF8 | A351CF8M | A351CF3 | A351CF3M | A351 CN7M |
| 4 | Stem | A182 F304 | A182 F304 | A182 F304 | A182 F304 | A182 F316 | A182 F304L | A182 F316L | 20-Alloy |
| 5 | Seat Ring | A182+F304 "1 | A182+F304*1 | A182+F304*1 | NA | NA | |||
| 6 | Back Seat | A276 304 | A276 304 | A276 304 | NA | NA | |||
| 7A | Bonnet Gasket |
304+ graphite |
304+ graphite |
304+ graphite |
304+ graphite |
316+ graphite |
304L+ graphite |
316L+ graphite |
316+ graphite |
| 7B | Ring Gasket |
Soft steel |
A182 F304 |
A182 F304 |
A182 F304 | A182 F316 | A182 F304L | A182 F316L | 20-Alloy |
| 8 | Bonnet Bolt |
A193 L7 |
A193 L7 |
A193 L7 |
A193 B8 |
A193 B8M |
A193 B8 |
A193 B8M |
A193 B8M |
| 9 | Bonnet Nut | A194 4 | A194 4 | A194 4 |
A19 4 8 |
A194 8M |
A194 8 |
A194 8M |
A194 8M |
| 10 | Packing | Graphite | Graphite | Graphite | Graphite *2 |
Graphite *2 |
Graphite *2 | Graphite *2 | Graphite *2 |
| 11 | Gland |
A276 410 |
A276 410 |
A276 410 |
A276 304 |
A276 316 |
A276 304L | A276 316L | 20-Alloy |
| 12 | Gland Flange | A352LCB | A352LC2 | A352 LC3 | A351 CF8 |
A351 CF8 |
A351 CF8 |
A351 CF8 |
A351 CF8 |
| 13 | Eyebolt | A193 L7 | A193 L7 | A193 L7 |
A193 B8 |
A193 B8 |
A193 B8 |
A193 B8 |
A193 B8 |
| 14 | Eyebolt Nut | A194 4 | A194 4 | A194 4 | A194 8 | A194 8 | A194 8 | A194 8 | A194 8 |
| 15 | Eyebolt Pin |
A276 410 |
A276 410 |
A276 410 |
A276 304 |
A276 304 |
A276 304 |
A276 304 |
A276 304 |
| 16 | Greas Fitting | Commercial | Commercial | Commercial | Commercial | Commercial | |||
| 17 | stem Nut | Bronze | Bronze | Bronze | Bronze | Bronze | |||
| 18 | Jam Nut | Carbon steel | Carbon steel | Carbon steel | Stainless steel | Stainless steel | |||
| 19 | Hand Wheel | Malleable iron | Malleable iron | Malleable iron | Malleable iron | Malleable iron | |||
| 20 | Wheel Nut | Carbon steel | Carbon steel | Carbon steel | Carbon steel+Zn | Carbon steel+Zn | |||
| *1 | PN≥600 CLASS seal face will be HF | ||||||||
| *2 | PTFE Optional | ||||||||
| *3 | Ductile Ni-Resist iron Optional | ||||||||
| NA | Integral with vessell | ||||||||
