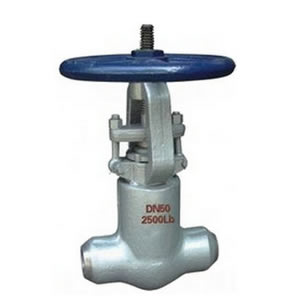

美标高压铸钢闸阀Z61Y
2016-08-04
钢制闸阀，API600/API 6D
钢制闸阀，ISO 10434/ISO 14313
温度和压力，ASME B16.34
结构长度，ASME B 16.10
端法兰， ASME B 16.5
对焊端，ASME B 16.25
测试和实验，API 598/API 6D
设计说明
高压密封阀盖
刚性或弹性闸板，全程导向
可更换阀座
锻造T型头阀杆
升降式或非升降式手轮
法兰或对焊端
适用于高压力
标准材料规范
| No. | Part Name | ASTM Material | |||||||
| Carbon Steel | 1.25Cr-0.5Mo | 2.25Cr-1Mo | 304 Type | 316 Type | 304L Type | 316L Type | 20 Alloy | ||
| 1 | Body | A216 WCB | A217WC6 | A217 WC9 | A351CF8 | A351CF8M | A351CF3 | A351 CF3M | A351 CN7M |
| 2 | Yoke | A216 WCB | A217WC6 | A217 WC9 | A351CF8 | A351CF8M | A351CF3 | A351 CF3M | A351 CN7M |
| 3 | Wedge | WCB+HF | A217 WC6+HF | A217 WC9+H F | A351 CF8 | A351CF8M | A351CF3 | A351 CF3M | A351 CN7M |
| 4 | Stem |
A182 F6a |
A182 F11 |
A182 F22 |
A182 F304 |
A182 F316 |
A182 F304L | A182 F316L | 20-Alloy |
| 5 | Seat Ring | A105+HF | A182 F11+HF | A182 F22+HF | NA | NA | NA | NA | NA |
| 6 | Bonnet | A216 WCB | A217WC6 | A217 WC9 | A351CF8 | A351CF8M | A351CF3 | A351 CF3M | A351 CN7M |
| 7 | Bonnet Gasket |
304+ Graphite |
304+ Graphite |
304+ Graphite |
304+ Graphite |
316+ Graphite |
304L+ Graphite |
316L+ Graphite |
316+ Graphite |
| 8 | Adapter Ring | Soft steel | A182 F6a | A182 F6a | A182 F304 | A182 F316 | A182 F304L | A182 F316L | 20-Alloy |
| 9 | Retainer | A182 F6a | A182 F6a | A182 F6a | A182 F304 | A182 F304 | A182 F304 | A182 F304 | A182 F304 |
| 10 | Yoke Cap | A216 WCB | A217WC6 | A217 WC9 | A351CF8 | A351CF8 | A351CF8 | A351CF8 | A351CF8 |
| 11 | Bonnet Bolt | A193 B7 | A193 B7 | A193 B16 | A193 B8 | A193 B8 | A193 B8 | A193 B8 | A193 B8 |
| 12 | Bonnet Nut | A194 2H | A194 7 | A194 7 | A194 8 | A194 8 | A194 8 | A194 8 | A194 8 |
| 13 | Packing | Graphite | Graphite | Graphite | Graphite | Graphite | Graphite | Graphite | Graphite |
| 14 | Gland | A276 410 | A276 410 | A276 410 | A276 304 | A276 316 | A276 304L | A276 316L | 20-Alloy |
| 15 | Gland Flange | A216 WCB | A216WCB | A216WCB | A351CF8 | A351CF8 | A351CF8 | A351CF8 | A351CF8 |
| 16 | Eyebolt | Carbon steel | A193 B7 | A193 B7 | A193 B8 | A193 B8 | A193 B8 | A193 B8 | A193 B8 |
| 17 | Eyebolt Nut | Carbon steel | A194 2H | A194 2H | A194 8 | A194 8 | A194 8 | A194 8 | A194 8 |
| 18 | Eyebolt Pin | A276 410 | A276 411 | A276 412 | A276 304 | A276 304 | A276 304 | A276 304 | A276 304 |
| 19 | Greas Fitting | Commercial | Commercial | Commercial | Commercial | Commercial | Commercial | Commercial | Commercial |
| 20 | Stem Nut | Bronze | Bronze "1 | Bronze "1 | Bronze | Bronze | Bronze | Bronze | Bronze |
| 21 | Jam Nut | Carbon steel | Carbon steel | Carbon steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| 22 | Hand Wheel | Malleable iron | Malleable iron | Malleable iron | Malleable iron | Malleable iron | Malleable iron | Malleable iron | Malleable iron |
| 23 | Wheel Nut | Carbon steel | Carbon steel | Carbon steel | Carbon steel+Zn | Carbon steel+Zn | Carbon steel+Zn | Carbon steel+Zn | Carbon steel+Zn |
| *1 | Ductile Ni-Resist iron Optional | ||||||||
| NA | Integral with vessell | ||||||||
