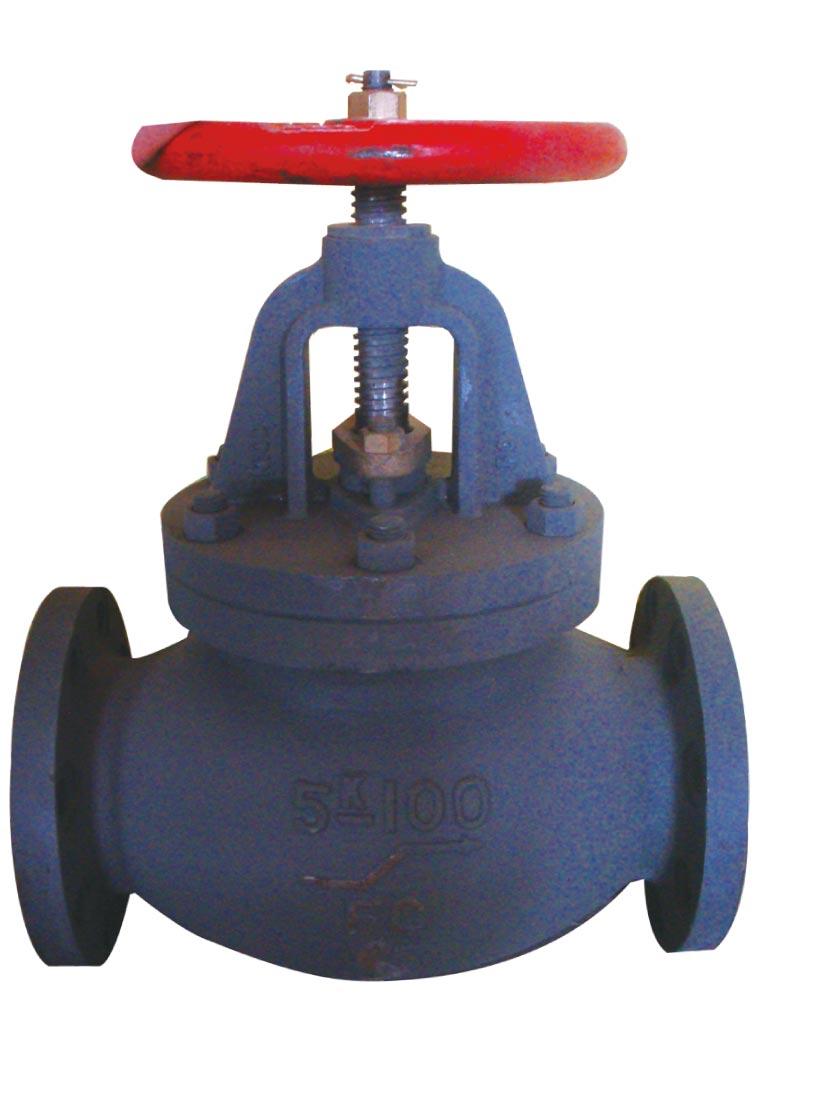

船用铸钢法兰直通截止阀F7319
2016-08-05
10K Marine Cast Steel Flanged Globe Stop Valves
JIS F7471 10K船用铸钢法兰直通截止止回阀
10K Marine Cast Steel Flanged Globe Stop Check Valves
性能规范 Technical Data
| 公称压力 Nominal Pressure(MPa) | 公称通径 Nominal Diameter(am) | 适用介质 Applicable Medium |
| 0.6 | 15～150 | 海水、淡水、滑油、燃油和 t≤250℃蒸汽 Sea water, Fresh water, Lubricanting oil, Fuel oil, t≤250℃ steam. |
| 1.0 | 65～150 | |
| 1.6 | 65～150 | |
| 2.5 | 15～125 |
| 零件名称 Parts Name | 材料 Material | |
| 名称 Name | 牌号 Marks | |
| 阀体、阀盖、阀盘 Body/Cover/Disc | 铸锡青铜 Cast Tin Bronze | ZCuSn10Zn2, ZCuSn5Pb5Zn5 |
| 阀杆 Stem | 铝青铜 Aluminum Bronze | CuA19Mn2 |
