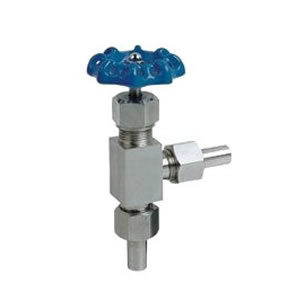

外螺纹角式截止阀J24W
2016-08-02
外螺旋角式截止阀主要零件材料Materials for main parts
| 零件名称Part name | 阀体、阀盖Body,Bonnet | 阀杆、阀瓣Stem,Disc | 填料Packing |
| J24W-160P-DN3 |
铬镍不锈钢 Cr.Ni Stainless steel |
不锈钢 Stainliess steel |
聚四氟乙稀、柔性石墨 PTEF,Soft graphite |
| J24W-320P-DN6 |
优质碳钢 High grade carbon steel |
铬镍不锈钢 Cr.Ni Stainliss steel |
聚四氟乙稀、柔性石墨 PTEF,Soft graphite |
| 型号Type |
公称压力(MPa) Nominal pressure |
试验压力PS(MPa)Test pressure |
工作压力(MPa) Working pressure |
工作温度(℃) Working temperature |
适用介质Applicable mediun | ||
| 壳体Shell | 密封（液）Seal | 密封（气）Seal | |||||
| J24W-160P-DN3 | 16.0 | 24.0 | 17.6 | 0.6 | 16.0 | P≤200℃ | 液化石油气水、油品等Petroleun gas Water,Oil etc. |
| J24W-320P-DN6 | 32.0 | 48.0 | 35.2 | 0.6 | 32.0 | C≤425℃ | |
| 型号Type |
公称直径DN(mm) Nominaldameter |
尺寸Dimensions | 重量(Kg)Weight | |||||
| L1 | Do | D2 | H | H1 | D1 | |||
| J24W-160P-DN3 | 3 | 80 | 65 | 159 | 170 | 14 | 3 | 1.0 |
| J24W-320P-DN6 | 6 | 80 | 65 | 159 | 170 | 14 | 6 | 1.0 |
